ZKLDF series

Description
Additional information
FAQ

ZKLDF: are low-friction, high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. These bearings are particularly suitable for precision applications involving combined loads. Their preferred areas of use are bearing arrangements in rotary tables and honing heads as well as measurement and testing equipment.

Internal gear

ZKLDF series

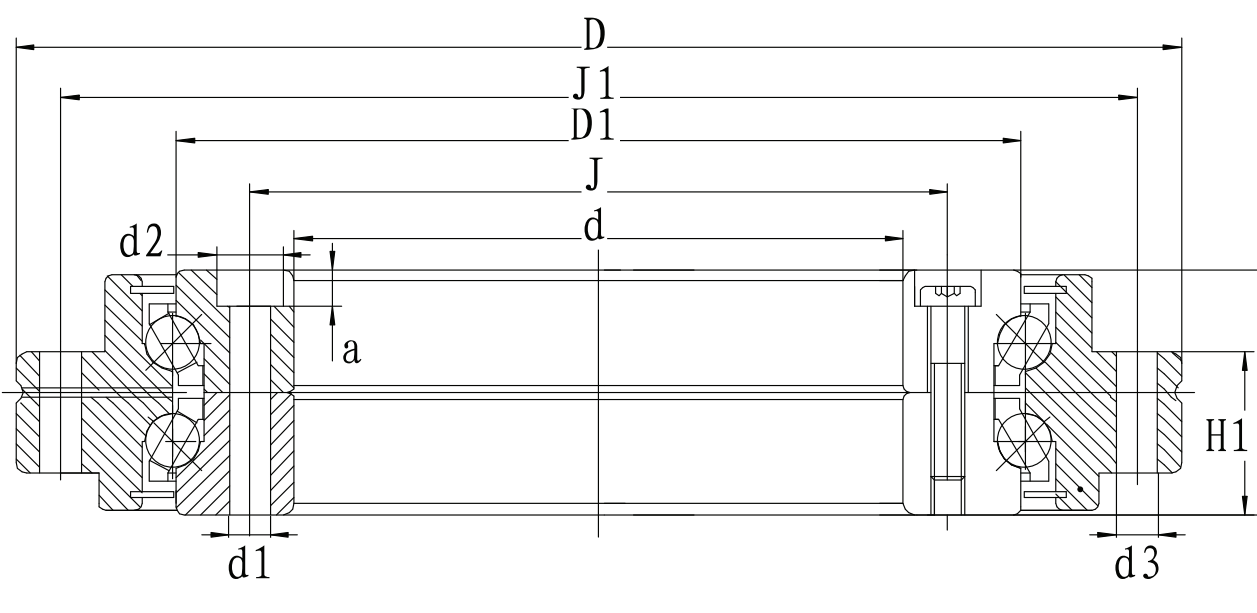

bearing type			boundary dimension						fixing holes					number of retaining screws	extraction thread		numberof pithX angle of pithch	screw tightening torque	basc laod rating axial dynamic load	static load	limiting speed	bearing frictional torque	weight
	d	D	H	D1	D2	D3	J	J1	d1	d2	quantity	d1	quantity		G	quantity	quantity	NM	ca	coa	r/min	Nm	kg
ZKLDF100	100	185	38	160	136	158	112	170	5.6	10	16	5.6	15	2	M5	3	18*20o	8.5	67	251	2800	1.6	4.5
ZKLDF120	120	210	40	184	159	181	135	195	7	11	22	7	21	2	M8	3	24*15o	14	72	315	2400	2	6
ZKLDF150	150	240	40	214	188	211	165	225	7	11	34	7	33	2	M8	3	36*10o	14	76	365	2000	3	7.5
ZKLDF200	200	300	45	274	243	271	215	285	7	11	46	7	45	2	M8	3	48*7.5o	14	112	550	1600	4.5	11
ZKLDF260	260	385	55	345	313	348	280	365	9.3	15	34	9.3	33	2	M12	3	36*10o	34	155	920	1200	7.5	22
ZKLDF325	325	450	60	415	380	413	342	430	9.3	15	34	9.3	33	2	M12	3	36*10o	34	165	1110	100	11	28
ZKLDF395	395	525	65	486	450	488	415	505	9.3	15	46	9.3	45	2	M12	3	48*7.5o	34	214	1470	800	16	39
ZKLDF460	465	600	70	560	520	563	482	580	9.3	15	46	9.3	45	2	M12	3	48*7.5o	34	255	1860	700	21	50
